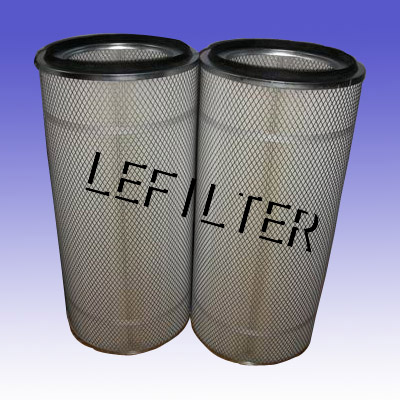

Replacement Element for Donaldson filter Part Number: 8PP-22269-00
Features
The imported material woven polyester extends cartridge life
and ensures higher efficiency by filtering small particles on the
surface of the media.
Wide pleat spacing provides thorough pulse cleaning of fibrous
and agglomerative particles.
Start-up efficiency of 99.9% on 0.2~2μdust particles reflects highest
industry standard.
Flame retardant media available.
Stainless steel construction available.
MEDIA COMPATIBILITY DATA
Temperature Resistance Moisture Absorption Chemical Tolerance Abration Resistance 180F / 82°C Maximum 14% @70F/ 21°C and 65%RH Acids—Good,Oxidants—Fair Bases—Good,Solvents—Good Good per TAPPI 476 (Taber method)
APPLICATIONS
Excellent on applications with a combination of fibrous and non-fibrous dust including ceramics dust,cotton,fiber-glass,grains and many more.
Proven solution for agglomerative dust.
CONFIGURATIONS
|
Collector Model |
Filter Area |
Pleated Height |
Dimentipons |
Material |
|||
|
ft2 |
m2 |
in |
mm |
in |
mm |
||
|
8PP-22269-00
|
83 |
7.7 |
2.0 |
50.8 |
12.74×26 |
323.6×660.4 |
woven polyester Stainless steel |
