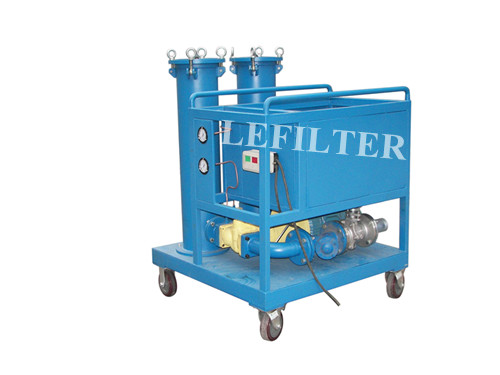

Product Introduction:
－It includes a special gear wheel drove by electric machinery,it has features of low noise,good self-priming and stable performance.
－to filter many kinds of corrosive media and the temperature can reach 200℃.
－Particularly suitable for filtering heavy viscosity oil.
－Excess flow protection device has been fitted in high pressure pipelines to protect hydraulic system.
－Using thermal overload relay to provide overload protection for electric machinery.
－The coarse suction filter can not only protect oil pump but aslo prolong the service life of main filter.
－According to different requirements,the filter precision can be selected to reach different oil rate.
Application:
to filter high-viscosity lubricating oil
to fill-up high-viscosity lubricating oil
the by-pass filtration for the working hydraulic lubrication system.
Technical Parameter
|
Model No. |
GLYC-25-* |
GLYC-40-* |
GLYC-80-* |
|
Rated Flow |
L/min |
25 |
40 |
80 |
|
Rated Voltage |
Mpa |
0.1 |
|
Loss of voltage |
Mpa |
>0.2 |
|
Pump-in filtering precision |
um |
100 |
|
Pump-out filtering precision |
um |
1、3、5、10、20 |
|
Motor power |
Kw |
2.2 |
3 |
4 |
|
Power supply |
V |
AC380V (three phase) |
|
weight |
Kg |
220 |
280 |
400 |
|
M/C size |
mm |
1080×600×980 |
1200×600×980 |
1500×740×1020 |
Note : * means filter pecision.003 means 3um
** means media ,,range:1.0 -3000,000cSt
