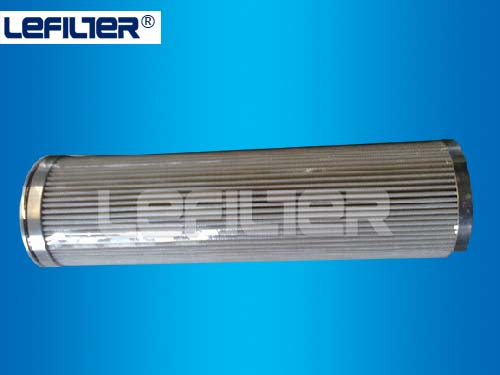

    Imported fiberglass LEHC2236FKP8H suction oil filter

    Read 0 Reviews23 Q&As Write a Review
    Filter Element 1.HV fiberglass material 2.High efficiency and good quality

    PARAMETER

    Brand Name:
    Model Number:
    Nominal filtration rating:
    Application:
    Working temperature:
    Replacement or not:Replacement

     Filter Element Introduction:

    1.It is widely used in hydraulic oil system and lubrication system
       to filter out the metal particles and rubber impurities caused by wearing in the oil to guarantee
       the normal operation of the system.
    2.For different accuracy requirements, there are coarse filter ordinary filter, fine filter and superfine
       filter to ensure targeted.

    The Filter Element Parameters:

    1.Filter accuracy: 1- 100um
    2.Size:    83.5*47.4mm
    3.Pressure: 21.0Mpa
    4.Material: HV fiberglass or domestic fiberglass
    5.Application field: hydraulic system, lubrication system

    Filter Element Features:

    1.Function: Oil filtration
    2.Working time:8-12 months
    3.Efficiency:99.98%
    4.Filtration medium:General hydraulic oil
    5.Application field: hydraulic system, lubrication system

    Quality Assurance:

    ISO 2941------Collapse & Burst Resistant
    ISO 2942------Fabrication & Integrity Test
    ISO 2943------Material Compatibility with Fluids
    ISO 3724------Flow Fatigue Characteristics
    ISO 3968------Pressure Drop vs. Flow Rate
    ISO 16889------Multi-pass Performance Testing

    Products Test:




    Products application:

    1.Metallurgy: used in hydraulic system of rolling mill, caster filter and various kinds of lubrication of filtering.

    2.Petrochemicals: oil refining, chemical production process of products and the separation of intermediate
    products and     recovery, the oil field note well water and natural gas particle filter except.

    3.Textile: polyester melt in the purification and drawing process even filter, air compressor protection filtering,
    compressed     gas oil removal in addition to water.

    4.Electronic and pharmaceutical: reverse osmosis water, deionized water to treatment filter and wash the liquid
    and glucose     former treatment filter.
