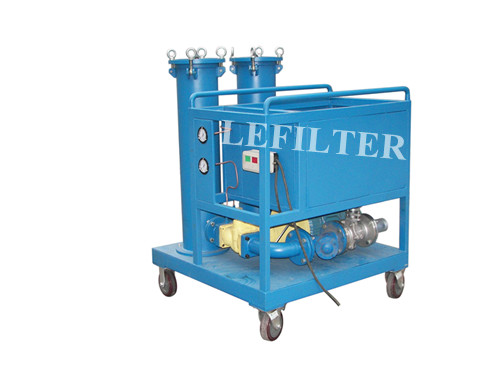

GLYC-80 High-Viscosity Oil Filter Equipment

Read 0 Reviews23 Q&As Write a Review

BXLUC Portable Oil Filter Machine Obtained ISO9001 Quality System Certificated Market:Global

Brand Name:
Model Number:
Nominal filtration rating:
Application:
Working temperature:
Replacement or not:Replacement

GNLUC High-Viscosity Oil Filter Series

Application:

to filter high-viscosity lubricating oil

to fill-up high-viscosity lubricating oil

the by-pass filtration for the working hydraulic lubrication system.

Product Introduction:

-It includes a special gear wheel drove by electric machinery,it has features of low noise,good self-priming and stable performance.

-to filter many kinds of corrosive media and the temperature can reach 200°C.

-Particularly suitable for filtering heavy viscosity oil.

-Excess flow protection device has been fitted in high pressure pipelines to protect hydraulic system.

-Using thermal overload relay to provide overload protection for electric machinery.

-The coarse suction filter can not only protect oil pump but aslo prolong the service life of main filter.

-According to different requirements,the filter precision can be selected to reach different oil rate.

Technical Parameter

Model No.		GLYC25-*	GLYC-40-*		GLYC-80-*
Rated Flow	L/min	25	40		80
Rated Voltage	Mpa	0.1
Loss of voltage	Mpa	>0.2
Pump-in filtering precision	um	100
Pump-out filtering precision	um	1,3,5,10,20
Motor power	Kw	2.2		3			4
Power supply	V	AC380V (three phase)
weight	Kg	220	280			400
M/C size	mm	1080×600×980	1200×600×980			1500×740×1020

Note : * means filter pecision,such as 003 means 3um

** means media , range:1.0 -3000,000cSt
