PECO filter element oil and water coalescer equivalent of CAA Series 5
1.Brief introduction
Lefilter manufacture the equivalent of Facet CAA Series 5 coalescer cartridges offer the finest performance available.This standard
line of high flow coalescer cartridges removes ultra-fine solids and enhances separation of water from jet fuel.
The Facet coalescer separator housings equipped with CAA Series 5 coalescer and companion separator cartridges have been
tested and fully qualified to meet the performance requirements to EI 1581, Fifth Edition, Category C (Category C replaces the
previous class A,B, and C of API 1581 3rd Edition.)Built for balanced fluid flow-thru and structural strength, each CAA Series 5
coalescer cartridge is a single-piece construction of various combined media, precisely arranged in many layers and pleats,
wrapped around a coated, perforated metal center tube—all encased in an outer sock material. All are 6” OD (152 mm) by 31∕2"
ID (89mm) and available in standard interchangeable nominal lengths from 111∕4" (290 mm) to 571∕4" (1450 mm). The CAA Series 5
coalescer cartridges are available in two cartridge mounting styles:

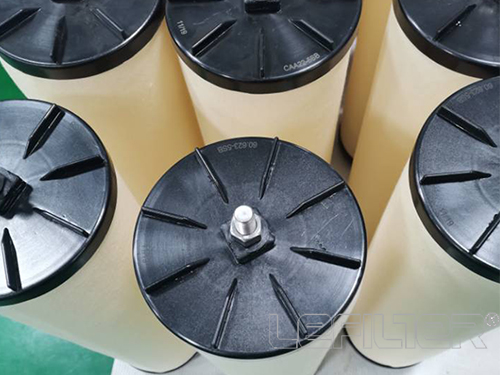

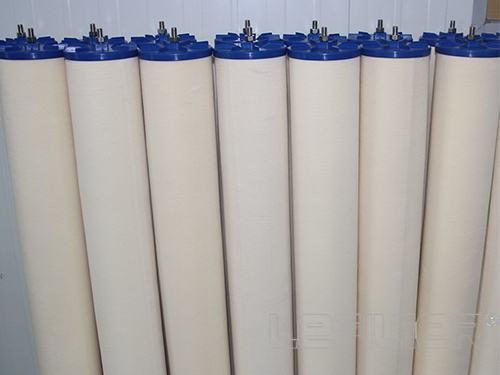

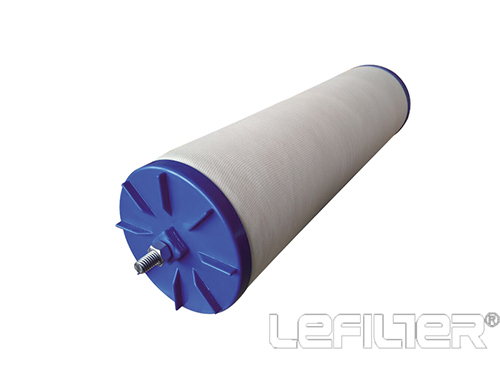

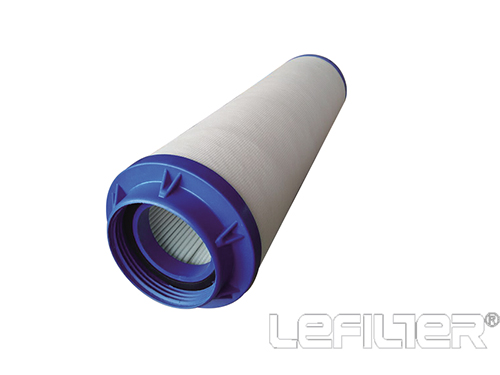

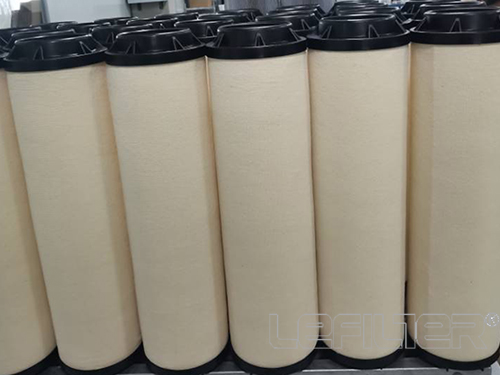

self-centering rod mount and screw base. The rod mount style has treated metal end caps, while the screw base ends are injection
molded,glass-filled nylon.This screw base material offers superior strength and ease of maintenance-uniform threads,no shrinkage,
no galling and no gasket to recover.
A permanently affixed Buna-N gasket seals against the V-type knife edge mounting adaptor to provide a positive seal.It will not
separate from the cartridge during installation or change out.
2.Standard Design Features
• Tested and qualified to the Fifth Edition of EI 1581, Category C
• Multi-layered media for increased solids holding capacity • Ultra-fine solids removal
• Maximum water coalescence
• Balanced cartridge flow characteristics
• Recommended maximum operating temperature: 240°F (115oC)
• Withstands in excess of 75 psi differential pressure
• pH range from 5 to 9 • Screw base or open-end configuration
3.Material
• All metal components are treated against corrosion
• Screw base ends are injection molded, glass-filled nylon with locked-in gaskets
• Buna-N gaskets—other materials are available on request
4.Data Sheet
|
MODEL NUMBER |
NOMINAL LENGTH (IN) |
NOMINAL LENGTH (MM) |
OUTSIDE DIAMETER OD (IN) |
INSIDE DIAMETER ID (IN) |
MOUNTING STYLE |
|
CAA11-5 |
111∕4 |
290 |
6 |
31∕2 |
Rod |
|
CAA14-5 |
141∕2 |
370 |
6 |
31∕2 |
Rod |
|
CAA14-5SB |
15 |
380 |
6 |
31∕2 |
Screw Base |
|
CAA22-5 |
221∕4 |
560 |
6 |
31∕2 |
Rod |
|
CAA22-5SB |
23 |
580 |
6 |
31∕2 |
Screw Base |
|
CAA28-5 |
283∕4 |
730 |
6 |
31∕2 |
Rod |
|
CAA28-5SB |
29 |
740 |
6 |
31∕2 |
Screw Base |
|
CAA33-5 |
331∕4 |
840 |
6 |
31∕2 |
Rod |
|
CAA33-5SB |
34 |
860 |
6 |
31∕2 |
Screw Base |
|
CAA38-5 |
38 |
960 |
6 |
31∕2 |
Rod |
|
CAA38-5SB |
39 |
990 |
6 |
31∕2 |
Screw Base |
|
CAA43-5 |
431∕4 |
1100 |
6 |
31∕2 |
Rod |
|
CAA43-5SB |
45 |
1140 |
6 |
31∕2 |
Screw Base |
|
CAA56-5 |
561∕4 |
1430 |
6 |
31∕2 |
Rod |
|
CAA56-5SB |
57 |
1450 |
6 |
31∕2 |
Screw Base |
For more details,contact us at any time,please.
