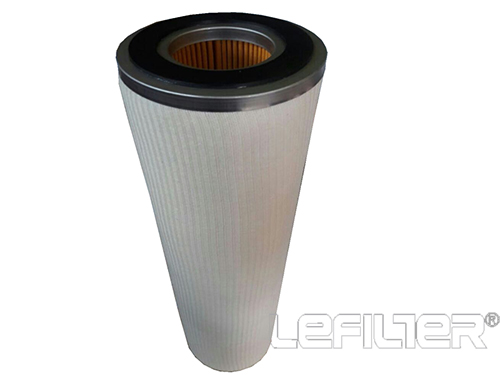

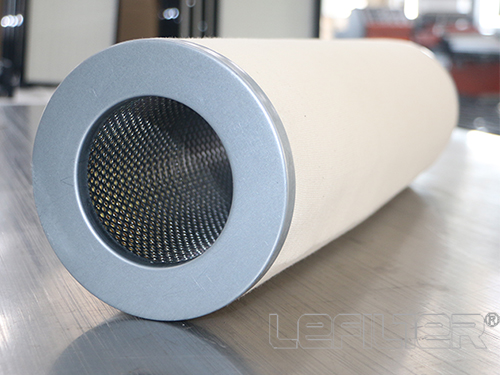

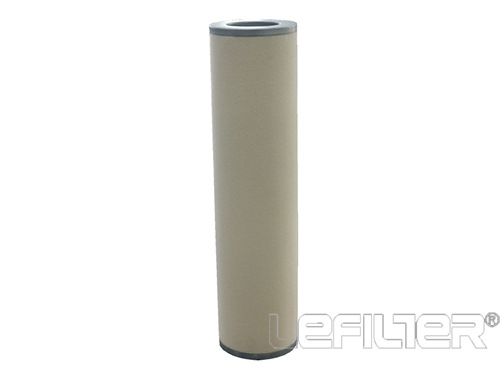

PECO Fiberglass Filter Separator Elements FG Series Equivalent
1.Brife introduction
Remove particulate and liquid droplets from air/gas streams with the fiberglass filter separator element.
The quality and construction of the filter elements used in a filter separator significantly affects compressor performance
and operating costs.Don't use imitations, get The Original from the Filter Separator experts at PECO. Also for use in dry
gas filter vessels when contaminants are shear-sensitive (sludge,waxes, gels, asphaltenes, etc.)
2.The bottomline
• Quality Construction
FibrSep elements are manufactured in an ISO 9001:2000
certified environment that ensures consistency of product quality.Consistent quality means fewer product issues that you have to
deal with in the field, improving productivity and reducing downtime.
• Seamless Design
The FibrSep filter media is configured as a seamless tube made of a three dimensional array of glass fibers bonded together with
a phenolic resin.This design provides structural integrity and eliminates seams and unbonded overlaps that can allow contaminant
to bypass the media. Bypass leads to fouling in downstream equipment and piping associated with increased operational and
maintenance costs.
• Built with Safety in Mind
At PECOFacet safety is our number one priority. FibrSep elements use metal parts that contain no exposed, jagged edges.This
prevents injury during handling. The spiral-wound cores are easier and safer to remove from the element support in the event that
the elements are over pressurized and crushed. Reduce safety risks, protect personnel, and help your facility achieve safety goals.
3.Application
• Natural Gas Transmission
Transmission station inlet and fuel gas
• Natural Gas Processing
Treating and dehydration tower inlets, fuel gas, meters
• Natural Gas Production and Gathering
Compressor suction
• Natural Gas Distribution
M&R station
• Refinery
Compressor suction and fuel gas
4.Particle Retention
• Efficiency: 98%
• Grade [μm]: 0.3, 0.5, 1, 5, 10, 25, 50
5.Specifications
Materials
• MEDIA phenolic impregnated seamless fiberglass
• CORE steel (galvanized or tin plated)
• OUTER COVER cotton
• END CAPS steel (galvanized or tin plated)
• GASKETS buna-n
• OPTIONS high pressure core, gasket materials
6.Operating Data
Model Max. Temp. [F] Max. D.P.1[psid]
FG-XX 275 120
FG-3XX 275 75.2
FG-5XX 275 35
• Recommended change-out DP is 15 psid
• Normal flow direction is outside to inside
• Recommended torque on element seal nut is 8-10 ft-lb
7.Nominal Dimensions
|
MModel |
O.D. [in.] |
I.D. [in.] |
Length [in.] |
|
FG-12 |
3.3 |
2.1 |
12 |
|
FG-24 |
3.3 |
2.1 |
24 |
|
FG-36 |
3.3 |
2.1 |
36 |
|
FG-72 |
3.3 |
2.1 |
72 |
|
FG-312 |
4.5 |
3.24 |
12 |
|
FG-324 |
4.5 |
3.24 |
24 |
|
FG-336 |
4.5 |
3.24 |
36 |
|
FG-372 |
4.5 |
3.24 |
72 |
|
FG-536 |
5.5 |
4.18 |
36 |
|
FG-572 |
5.5 |
4.18 |
72 |
8.Order Information
|
FG |
336 |
10 |
|
|
SIZE |
GRADE [μm] |
MISC |
|
12 |
A = 0.5 |
Blank = Buna gasket |
|
24 |
A SCW = 0.3 |

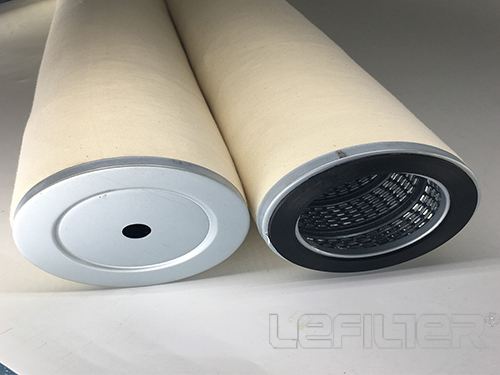

CE = Closed end w/bolt hole |
|
36 |
Blank = 1 |
HP = High pressure core |
|
72 |
5 |
OP = Outer can body |
|
312 |
10 |
V = Fluorocarbon gasket |
|
324 |
25 |
EPR = Ethylene propylene rubber |
|
336 |
50 |
SS = Stainless steel |
|
372 |
|
|
|
536 |
|
|
|
572 |
|
|
For best price,contact us at any time,please.
